Microphone Spliter MTS0824 & MTS1648

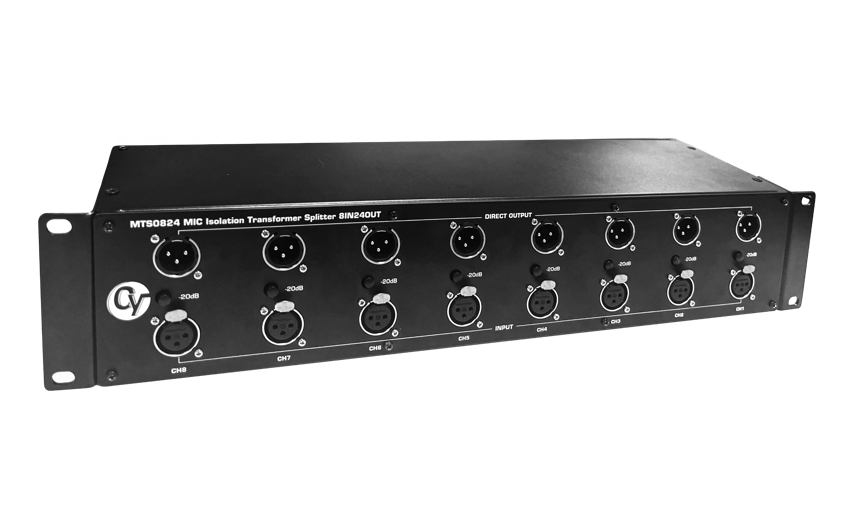

MTS0824 is equivalent to 8 MTS0103; It has 8 balanced inputs, 8 -20dB switchable switches :8 direct outputs, 16 isolation transformer outputs, and 16 ground separation selection switches.

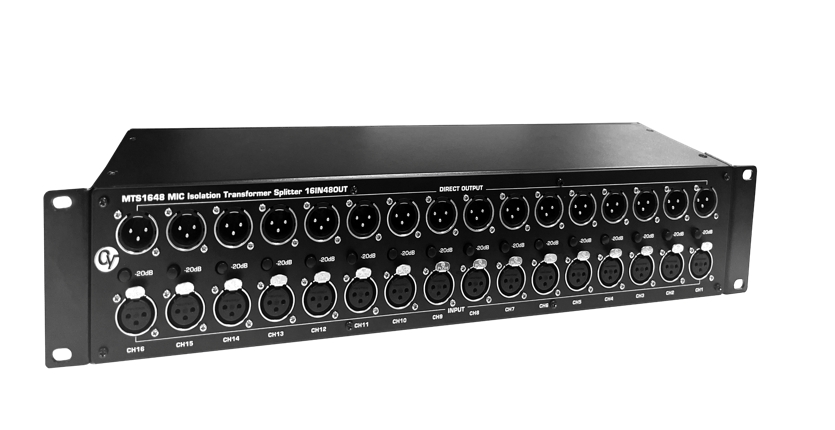

MTS1648 is equivalent to 16 MTS0103; With 16 balanced inputs, 16 -20dB switchable switches; 16 direct outputs, 32 isolation transformer outputs, and 32 ground separation selection switches.

FEATURES

8 channel microphone inputs, 3 sets of 8 channel microphone (24 channel) outputs (16 channel microphone input, 3 sets of 16 channel microphones (48 channel) output)
Operation level up to +26dBu
Broadcast grade audio quality
Specially designed for mobile performance, director switch, studio, theater, etc
One direct output, two output ground lines can be independently disconnected setting selection
Low distortion audio isolation transformer output
Standard 2U-19 rack mouting
Highly integrated, rugged all-metal body
Manufactured by military level parts
Separate ground separation setting options

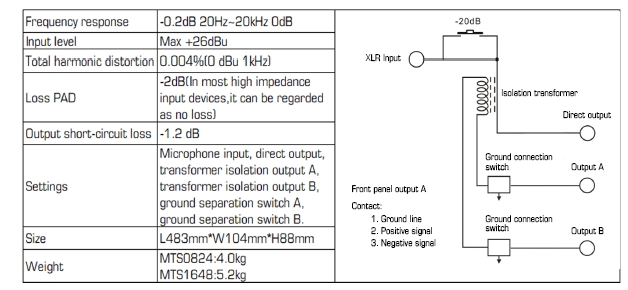

TECHNICAL DATA
