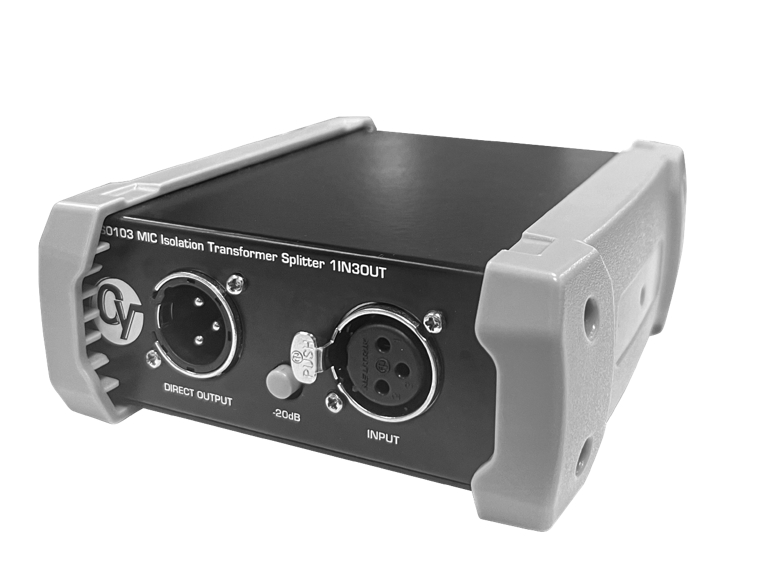

Microphone Spliter MTS0103

The MTS Series MIC Isolation Transformer Splitter are specially designed for studios, theaters and other two-level tuning systems, which can distribute any microphone signal to the two-level mixing console and recording system.Among them, MTS0103 is designed to be portable and adopts a universal XLR connector design, allowing users to easily change or rearrange the positions of input and output microphones. Each channel of this series of distributors has three sets of outputs: one set of straight-through outputs and two sets of transformer isolated outputs. The transformer isolation output is equipped with a ground wire switch, which is convenient to solve the noise caused by the ground wire. If the switch is in the Lift position, the ground wire is floating; otherwise, the ground wire is connected. Each line is equipped with a -20dB switch. Professional broadcast quality microphone distribution system, can provide demanding audio features, using a first quality audio isolation transformer, can provide to handle audio level signals up to +26dBu.
Application: Connect MIC output signal to mixer and isolated output signal to spared mixer/ recording mixer. Main reinforcement mixer can provide direct output with phantom power. Phantom power can transfer to microphone. So capacitor microphone can directly connect to MTS series MIC input.

FEATURES

MTS0103 has 1 balanced input, 1 -20dB switchable: 1 direct output, 2 isolation transformer output, and 2ground separated selection switches.
1 microphone input, 3 signal distribution output
Broadcast grade audio quality
Switchable between 0dB and -20dB
Operating level up to +26dBu
One direct output, two output ground lines can be independently disconnected setting selection
Low distortion audio isolation transformer output
Manufactured by military indicator parts
Highly integrated, rugged all-metal body
Specially designed for mobile performance, director switch, studio, theater, etc.

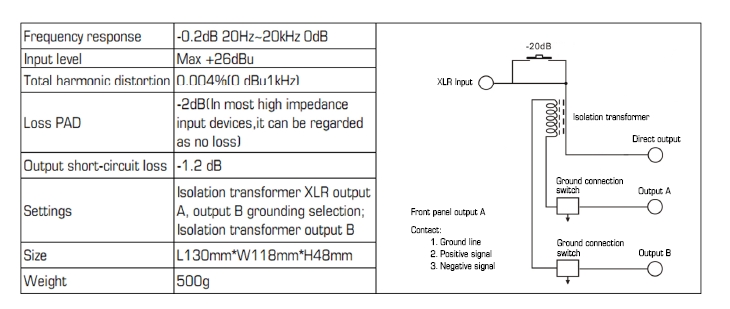

TECHNICAL DATA
