Zoning mixer ZPR-3520V2

The ZPR-3520V2 is a 3-Zone mixer / preamplifier with two stereo and one mono zone output. On the choice of the installer, the zones can be level-controlled by either the internal front-panel control or an external potentiometer control (ZCP10A, optional). Every output zone’s source signal can be freely chosen from any of the 4 stereo inputs, with two of these stereo inputs re-routable to the front side 3.5mm TRS stereo input and the rear-side balanced stereo input (FOH), thus providing connectivity to both mobile players and balanced sources like a connected DJ or stage mixer. Two microphone inputs with switchable priority can either be included or excluded in/from every zone. Additional 2-Band EQs for every zone output and the music mute and emergency signal inputs with automatic priority make the ZPR-3520V2 a truly versatile core of any installed sound system.

FEATURES

5 stereo inputs, 4 equipped with rear-panel gain and freely routable to output zones A | B | C. 5th input only routable to Zone C.

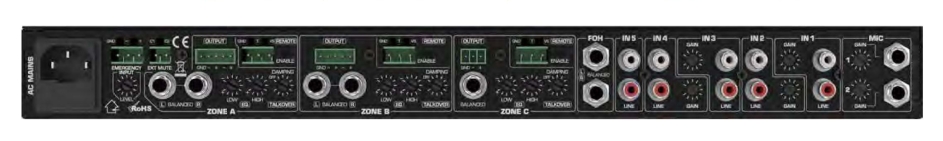

Rear-panel balanced stereo input (FOH input) and front-side 3.5mm stereo TRS jack, routable to zones A | B | C in lieu of stereo input 1 and 4 respectively
2x Mic inputs with rear-side 1/4” TRS connectors and gain control
12V phantom power for microphones by internal jumper Voice-specific 2-Band EQ plus “on air” switches for mic inputs Auto talk-over for automatic music level reduction when microphone is used, damping level adjustable per zone. Microphone include/exclude switch per zone
Microphone level setting per zone
Two stereo output zones and one mono output zone
5 LED level meter for every zone
Rear-side adjustable 2-Band EQ for each zone

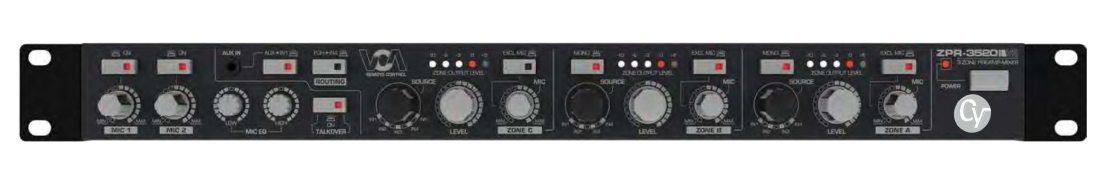

Volume control for every switchable between front-panel volume control and rear-panel connected external remote control potentiometer (optional, recommended control panel ZCP10A) Balanced TRS and Phoenix output connectors for each zone Emergency input which shuts down master output when emergency signal comes in and plays emergency signal instead Output mute contact to externally mute the output
All switches with LED status indicator
Internal wide-voltage swing linear power supply for excellent audio dynamics
Full metal case with detachable rack ears
AC mains voltage selector switch 115/230V
CE/ROHS compliant

TECHNICAL DATA
Signal/Noise....>82dBu (unwgtd 22Hz-22KHz)
Crosstalk Damping...................＞65dB (Line)

THD......................................＜0.05% (Line)

Frequency response................20Hz – 20 kHz

AC IN ..........................115V/230~ 50/60Hz

Power consumption.......................max. 20W

Dimensions...........W483xH44.5xD191.0mm

Weight.............................................2.76 kg

LOGISTICS DATA
Order Number................................2006911
Single unit EAN-13..............5060502920621

Single Carton size.................535x350x90mm

Single Carton gross weight..................3.51kg

Units per master carton..............................4

Master carton size..............560x375x390mm

Master carton gross weight...............15.24kg
