Background Music System DMP-230V2 (B)

Media Player | FM Tuner | BT Option

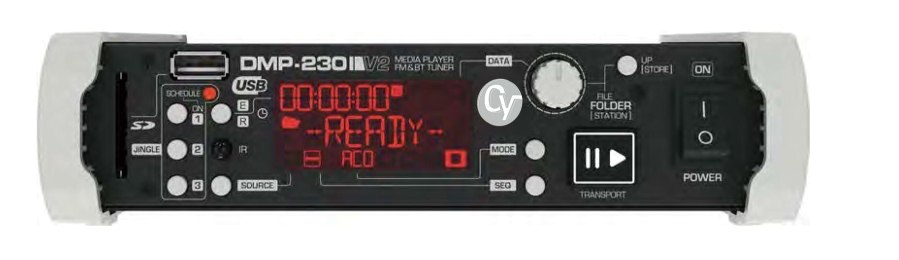

Designed to add MP3 file replay and FM radio reception to any professional audio system, the DMP-230V2 sports intuitive use, excellent audio quality and the added value of an in-built jingle player with scheduling. The latter allows to insert jingles (like advertisements, etc.) either at the touch of a button or in certain time intervals into the running program. A large LCD provides clear status information and read-out of MP3 file names and RDS radio text, and an included IR remote control provides additional convenience in daily use. Packed in a rugged metal case with stylish plastic side cheeks, the DMP-230V2 can be operated stand-alone our mounted into a 19’’ rack by means of the optional rack kit (not included). Also available with additional built-in Bluetooth module as DMP-230V2B.

FEATURES

Media player/tuner with file/folder access for USB
thumbdrives/SD cards up to 16GB/2000 songs
FAT32 file system
MP3 file name readout on large LCD display
Regular and random play sequence
Elapsed/remain time mode
FM tuner mode with RDS station display
10 self-programmable radio station presets
Jingle player with up to 3 jingles and additional
scheduled play mode
IR remote for media player transport functions, FM stations and volume control

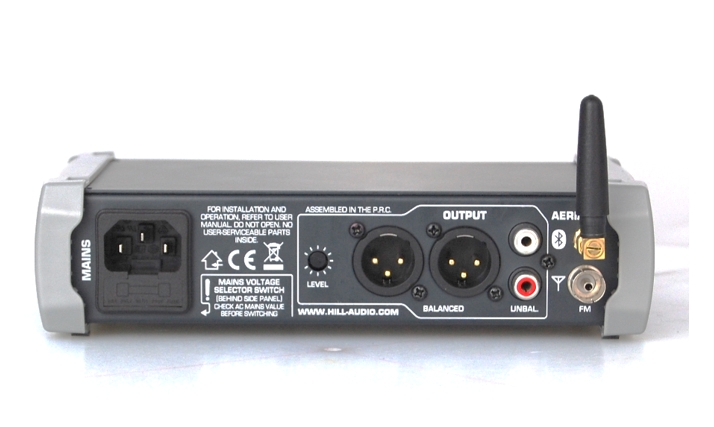

Balanced (XLR) and unbalanced (RCA) output
Output level setting on rear panel
Low-noise linear power supply
Full metal case with plastic side cheeks (rack mount kit optional)
CE/ROHS compliant
Available as:
DMP-230V2 without Bluetooth module
DMP-230V2B with Bluetooth module


TECHNICAL DATA

Audio formats (local replay):...................MP3

AC IN ..........................115V/230~ 50/60Hz

Power consumption.......................max. 10W

Dimensions.......W195.0×H50.0×D131.0mm
(with plastic side cheeks)
W180.0×H42.0×D114.2mm
(without plastic side cheeks)

Weight.............................................0.90 kg


LOGISTICS DATA

DMP-230V2B (with Bluetooth module)
Order Number................................2003311

Single unit EAN-13..............5060502920966

Single Carton size.................260x255x90mm

Single Carton gross weight..................1.16kg

Units per master carton..............................4

Master carton size..............390x285x280mm

Master carton gross weight.................5.34kg
