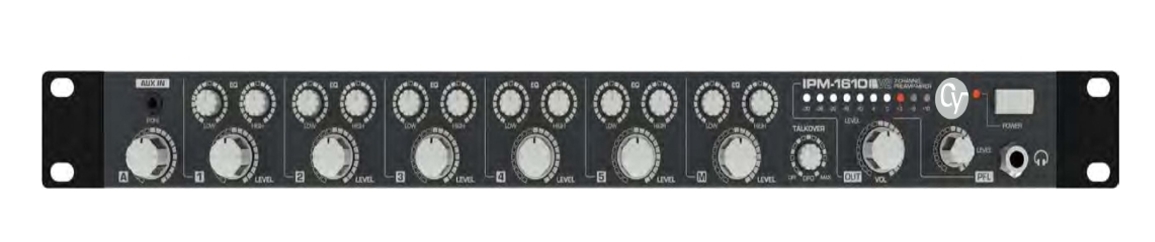

Background Music System IPM-1610V2

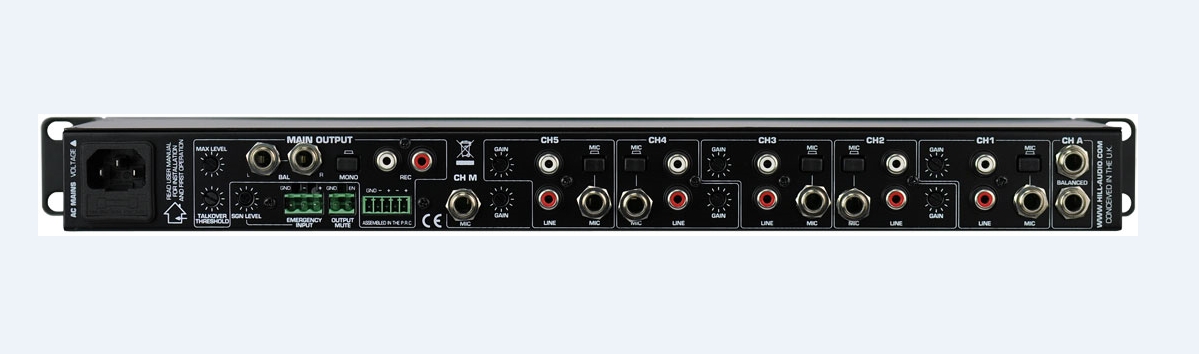

The IPM-1610V2 7-channel mixer is a perfect fit at the heart of any installed sound system where flexibility needs to be paired with simplicity of operation. It offers 5 multi-purpose inputs which can either be fed with a balanced microphone signal or an unbalanced stereo line signal. One further balanced stereo line level input is specifically useful when processing an auxiliary line-level source from further distance, like a mixer on a stage, or the output of a different room’s system. By inserting a signal cable into the provided 3.5mm TRS jack on the front, this channel can also be used for a local signal feed from a portable device. The additional, dedicated microphone input with adjustable talkover (priority) provides control over announcements. Every input – with the exception of the balanced stereo input – is equipped with rear-panel gain control and a front-panel 2-band equalizer. The external shutdown and emergency signal input connections allow integration with central announcement and evacuation systems.

FEATURES

5 stereo inputs switchable between balanced microphone and unbalanced line input level (switch on rear panel)
1 balanced stereo input (FOH input), with auto-switching 3.5mm TRS input on the front panel
1 microphone input with rear-side 1/4” TRS connectors
Rear-panel gain control, front-panel 2-Band EQ and front-panel level control for all input channels (no gain for FOH input).
12V phantom power for microphones by internal jumper Adjustable auto talk-over for automatic music level reduction when microphone is used
One stereo master output
10 LED level meter for stereo master output
Rear-side adjustable maximum level control for master output
Rear-side mono switch for master output
Balanced TRS and Phoenix output connectors
Emergency input which shuts down master output when emergency signal comes in and plays emergency signal instead Output mute contact to externally mute the output
Headphone output with volume control and front-side 6.3mm stereo jack
Unbalanced record output
All switches with LED status indicator
Internal wide-voltage swing linear power supply for excellent audio dynamics
Full metal case with detachable rack ears
AC mains voltage selector switch 115/230V
CE/ROHS compliant

TECHNICAL DATA

Signal/Noise....>82dBu (unwgtd 22Hz-22KHz)
Crosstalk Damping...................＞65dB (Line)

THD......................................＜0.03% (Line)

Frequency response................20Hz – 20 kHz

AC IN ..........................115V/230~ 50/60Hz

Power consumption.......................max. 20W

Dimensions...........W483xH44.5xD152.0mm

Weight.............................................2.30 kg

LOGISTICS DATA

Order Number................................2005411
Single unit EAN-13..............5060502920348

Single Carton size.................535x255x90mm

Single Carton gross weight....................2.8kg

Units per master carton..............................4

Master carton size..............560x285x390mm

Master carton gross weight.................12.1kg
