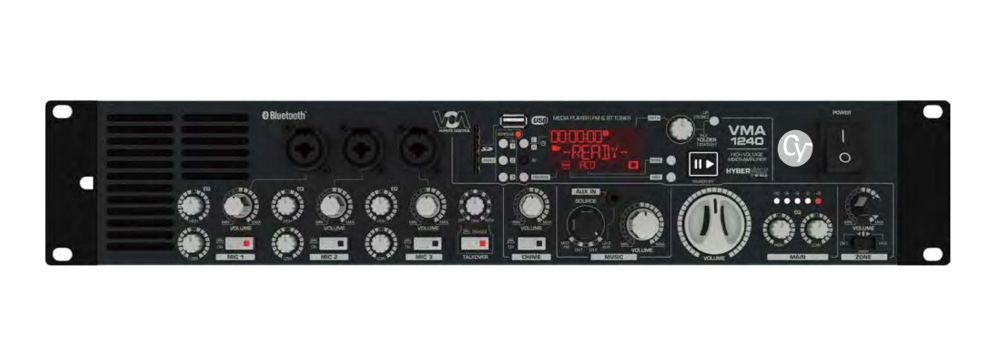

Background Music System VMA-1240B

The VMA-1240 media amplifier combines a MP3 player, a Bluetooth receiver, a FM Tuner and a multitude of microphones and stereo sources with a high-headroom 240W high-impedance (100V) amplifier in one compact unit. The amplifier is a transformer-less design using the unique Hybervolt™ topology, thus reducing the weight, improving audio fidelity and being field-serviceable. VCA volume remote control is provided for the main output. With the additional zone output, the unit can control an external amplifier for the zone signal, which can be the same as the master signal or a direct choice of inputs. A music on-hold output allows to feed the unit’s music program into a telephone system. Adding the seamless integration with fire evacuation systems, the VMA-1240 is the default choice for any mid-scale venue employing 100V line speakers for sound reinforcement.

FEATURES

Mixer section with 1x music and 3x microphone sources
Music source switchable: Media player/tuner, 3 external line inputs (with gain control) and front-side 3.5mm TRS line input
Internal media player/tuner with file/folder access for USB thumbdrives/SD cards up to 16GB/2000 songs, MP3 file name
readout on large LCD display, regular and random play sequence, elapsed/remain time mode, FM tuner mode with
RDS station display, jingle player with up to 3 jingles and additional scheduled play mode
Built-in Bluetooth receiver
Microphone inputs with phantom power, isolation transformer (only Mic 1), LPF & Gain (rear), volume & EQ controls (front)
and on/off switch
Adjustable auto talk-over for automatic music level reduction
Master section with 2-Band EQ plus 5-LED output level meter
Additional rear-side maximum level control for master
Remote volume control option via external potentiometer
Chime sound generator with adjustable volume, external trigger and user-loadable sound on memory card
Zone section with separate volume control

Zone assignable to master signal or to two of the rear-side line inputs, routed to preamp output
Mono amplifier block with 240W@40 Ohms (100V) Transformer-less Hybervolt™ amplification technology for extended bandwidth, lower weight and field-serviceability
Silent fan cooling with temperature controlled speed
Linear power supply with toroidal transformer
Phoenix-compatible speaker output with security cover
MOH (music on hold) output with adjustable music and mic levels, isolation transformer and selectable music source Emergency priority input and output mute contact for external output muting/emergency message priority
Full metal case with detachable rack ears
AC mains voltage selector 115/230V
CE/ROHS compliant
TECHNICAL DATA

Power (RMS) .................1×240W@40 Ohms

Signal/Noise.............................＞72dB (Line)

Crosstalk Damping....................＞65dB (Line)

THD......................................＜0.05% (Line)

Frequency response.................20Hz – 20 kHz

AC IN (230V setting).......AC220-250V~ 50Hz

AC IN (115V setting).......AC110-120V~ 60Hz

Power consumption......................max. 320W

Dimensions........W483.0×H88.5×D237.0mm

Weight...............................................8.6 kg

LOGISTICS DATA

Order Number................................2011401

Single unit EAN-13..............5060502921246

Single Carton size...............535x350x180mm

Single Carton gross weight...................9.6 kg

Units per master carton..............................2

Master carton size..............560x390x375mm

Master carton gross weight................20.4 kg
