Background Music System VMA-1120

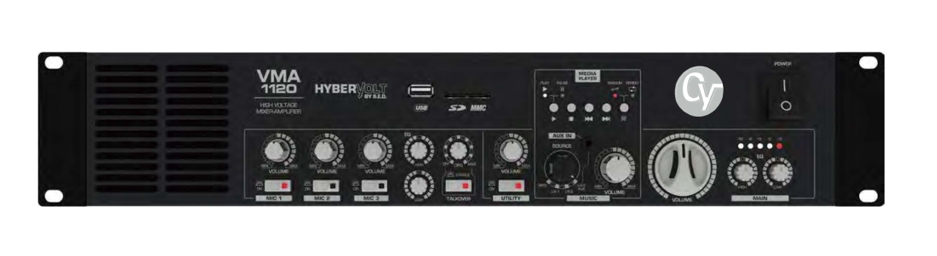

The VMA-1120 media amplifier combines a multitude of microphones and stereo sources and an integrated MP3 player with a high-headroom 120W high-impedance (100V) amplifier in one compact unit. The amplifier is a transformer-less design using the unique Hybervolt™ topology, thus reducing the weight, improving audio fidelity and being field-serviceable. Adjustable microphone priority and a front-side 3.5mm stereo input provide extended convenience both for paging as well as replay from mobile devices. The clear front panel layout makes operation simple for less experienced users. Adding the seamless integration with fire evacuation systems, the VMA-1120 is the perfect choice for small-to-medium sized locations employing 100V line speakers for sound reinforcement, where simplicity and budget conscience rule.

FEATURES

Mixer section with 1x music and 3x microphone sources
Music source switchable: Media player, 3 external line inputs (with rear gain control) and front-side 3.5mm TRS line input
Internal media player for USB thumbdrives/SD cards up to 16GB/2000 songs, regular and random play sequence, repeat mode
Microphone inputs with phantom power, isolation transformer (only Mic 1), Gain (rear), volume & common EQ controls (front)
and on/off switch
Adjustable auto talk-over for automatic music level reduction
Additonal utility input for external spot announcers or chime generators
Master section with 2-Band EQ plus 5-LED output level meter
Additional rear-side maximum level control for master
Balanced stereo link output to feed output signal to further amplifiers
Mono amplifier block with 120W@40 Ohms
Transformer-less Hybervolt™ amplification technology for extended bandwidth, lower weight and field-serviceability

Silent fan cooling with temperature controlled speed
Linear power supply with toroidal transformer

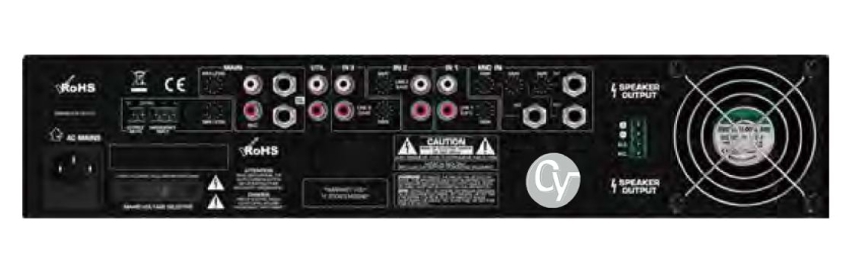

Phoenix-compatible speaker output with security cover Emergency priority input and output mute contact for external output muting/emergency message priority
Full metal case with detachable rack ears
AC mains voltage selector 115/230V
CE/ROHS compliant

TECHNICAL DATA

Power (RMS) ..................1x120W@40 Ohms

Signal/Noise.............................＞72dB (Line)

Crosstalk Damping....................＞65dB (Line)

THD......................................＜0.05% (Line)

Frequency response.................20Hz – 20 kHz

AC IN (230V setting).......AC220-250V~ 50Hz

AC IN (115V setting).......AC110-120V~ 60Hz

Power consumption......................max. 180W

Dimensions........W483.0×H88.5×D237.0mm

Weight...............................................8.5 kg

LOGISTICS DATA
Order Number................................2013601

Single unit EAN-13..............5060502921239

Single Carton size...............535x350x180mm

Single Carton gross weight...................9.5 kg

Units per master carton..............................2

Master carton size..............560x390x375mm

Master carton gross weight................20.2 kg
