Background Music System IMA-202V2 (B)
One- or Two-Zone Wall Amplifier | Media player | FM Tuner | Bluetooth Option

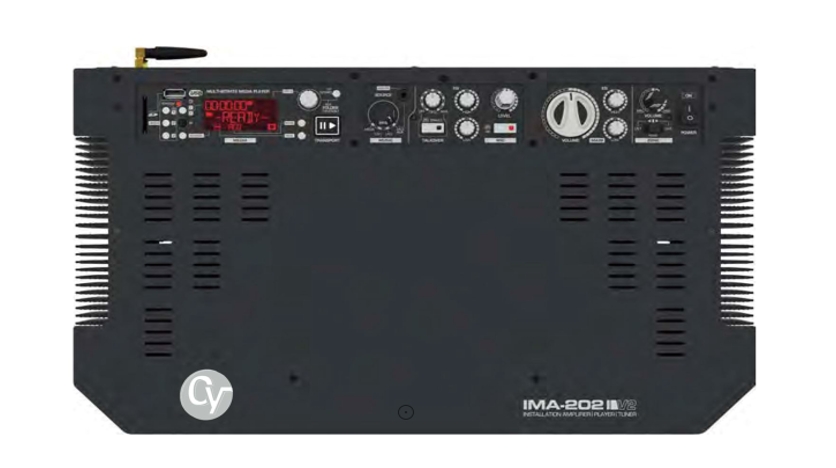

The IMA-202V2 is a wall-mount version of the popular IMA-200V2 rack-mount media amplifier, perfect for all locations where no rack space is available, like in small retail outlets or coffee shops. It combines MP3 replay and FM tuner reception as music sources with a microphone input and a high-headroom power amplifier in one compact unit.
Apart from its main output, an additional zone output is available. Depending on the application, the unit can be configured to either use the internal amplifier as a stereo amplifier and an external amplifier for the zone signal, or to use the internal amplifier as a dual mono unit, one for the main and one for the zone signal.
A music on-hold output allows to feed the unit’s music program into a telephone system. Adding the seamless integration with fire evacuation systems, the IMA-202V2 is the perfect all-in-one solution for applications with space limitations.
Also available with additional built-in Bluetooth module as IMA-202V2B.
FEATURES
Mixer section with one music and one microphone source

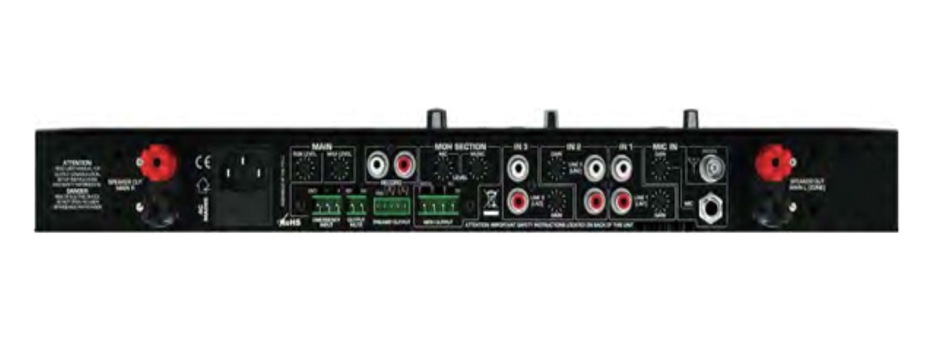

Music source switchable between internal media player/tuner, 3 rear-side connected line sources (with gain control) and one front-side 3.5mm stereo TRS line input
Internal media player/tuner with file/folder access for USB thumbdrives/SD cards up to 16GB/2000 songs, MP3 file name readout on large LCD display, regular and random play sequence, elapsed/remain time mode, FM tuner mode with RDS station display, jingle player with up to 3 jingles and additional scheduled play mode
Microphone input with phantom power, isolation trans-former, low-pass filter, rear-side gain control, front-side volume control, front-side on/off switch and 2-band-EQ
Adjustable auto talk-over for automatic microphone priority
Master section with 41-click volume control and 2-Band EQ
Additional rear-side maximum level control for master
Zone section with separate volume control assignable to master signal or to two of the rear-side line inputs
Two independent internal mono amplifier blocks with RMS power of 80W@4Ohms / 50W@8Ohms each
Amplifier blocks can be assigned to carry master stereo signal or mono master and mono zone signal each
Noiseless convection cooling
Over-temperature protection
Linear power supply with toroidal transformer
Internally selectable 80Hz high pass filter for every ampli-fier block
Binding post speaker outputs
Preamp output configurable to carry same signal as internal amplifier block inputs or zone signal in stereo
MOH (music on hold) output with adjustable music and mic levels, isolation transformer and selectable music source from any of the 4 line inputs
Emergency priority input and output mute contact for exter-nal output muting/emergency message priority
Output mute contact to externally mute the output
Full metal wall-mount case with loudspeaker cable covers Internal AC mains voltage setting 115/230V
CE/ROHS compliant
Available as IMA-202V2 without Bluetooth module and as IMA-202V2B with Bluetooth module
TECHNICAL DATA
Power (RMS) stereo.....2×50/80 @ 8/4 Ohms
Signal/Noise.............................＞82dB (Line)
Crosstalk Damping....................＞65dB (Line)
THD......................................＜0.05% (Line)
Frequency response.................20Hz – 20 kHz
AC IN (230V setting).......AC220-250V~ 50Hz
AC IN (115V setting).......AC110-120V~ 60Hz
Power consumption......................max. 200W
Dimensions........W450.0×H261.0×D44.5mm
Weight.............................................6.10 kg
LOGISTICS DATA
IMA-202V2 (without Bluetooth module)
Order Number................................2006141
Single unit EAN-13..............5060502920706
IMA-202V2B (with Bluetooth module)
Order Number................................2006151
Single unit EAN-13..............5060502920713
Single Carton size.................535x350x90mm
Single Carton gross weight....................6.9kg
Units per master carton..............................4
Master carton size..............560x375x390mm
Master carton gross weight.................28.8kg
