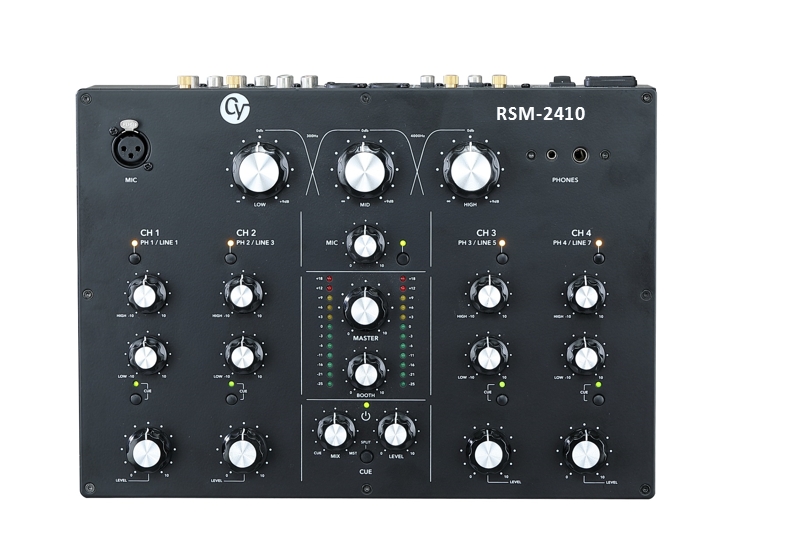

Rotary mixer RSM-2410
4-Channel Rotary Mixer
RSM-2410(4 Channel Rotary DJ Mixer) will open up a new world of intuitive DJing techniques for you to use. Its hands on approach is built upon a classic design, using rotary potentiometers instead of faders on each channel.
To establish the high quality experience expected of rotary encoder mixers, RSM-2410 has incorporated ALPS Blue Velvet RK27 potentiometers, used for decades in high end audio equipment, on each channel’s master level. These potentiometers are favoured for their smooth and clean response, allowing precision level setting and adjustments that will help with the creation of long, fluid mixes.
Create seamless transitions between songs thanks to the three-band master equaliser and isolator, allowing you to add movement and style to your mix. The inclusion of microphone and headphone inputs at the front of the unit allow for easy vocal inclusion and audio monitoring.
RSM-2410(4 Channel Rotary DJ Mixer) will open up a new world of intuitive DJing techniques for you to use. Its hands on approach is built upon a classic design, using rotary potentiometers instead of faders on each channel.
To establish the high quality experience expected of rotary encoder mixers, RSM-2410 has incorporated ALPS Blue Velvet RK27 potentiometers, used for decades in high end audio equipment, on each channel’s master level. These potentiometers are favoured for their smooth and clean response, allowing precision level setting and adjustments that will help with the creation of long, fluid mixes.
Create seamless transitions between songs thanks to the three-band master equaliser and isolator, allowing you to add movement and style to your mix. The inclusion of microphone and headphone inputs at the front of the unit allow for easy vocal inclusion and audio monitoring.
FEATURES
Four channel premium rotary DJ mixer
Maintain maximum signal integrity via all analog circuitry
Features premium quality ALPS Blue Velvet RK27 potentiometers
Classic design matched with modern feature
TECHNICAL DATA
Classic rotary mixer with 4 input channels and integrated 3-band frequency isolator for DJs
Gain control, 2-band equalizer (treble / bass) and phono / line switching per channel
Effective boost and kill function
Kill characteristics allow bass, mids and treble to be completely eliminated for creative mixing
Classic ALPS rotary potentiometer (Blue Velvet RK27)
High quality components guarantee a long service life and excellent sound properties
DJ microphone input with separate volume control
Pre-listening to the input channels and the master sum via adjustable headphone output
With cue mix / split function
12-Digit stereo LED level display and master control
Booth output with separate volume control
Connections for DJ microphone and headphones duplicated on the top and front

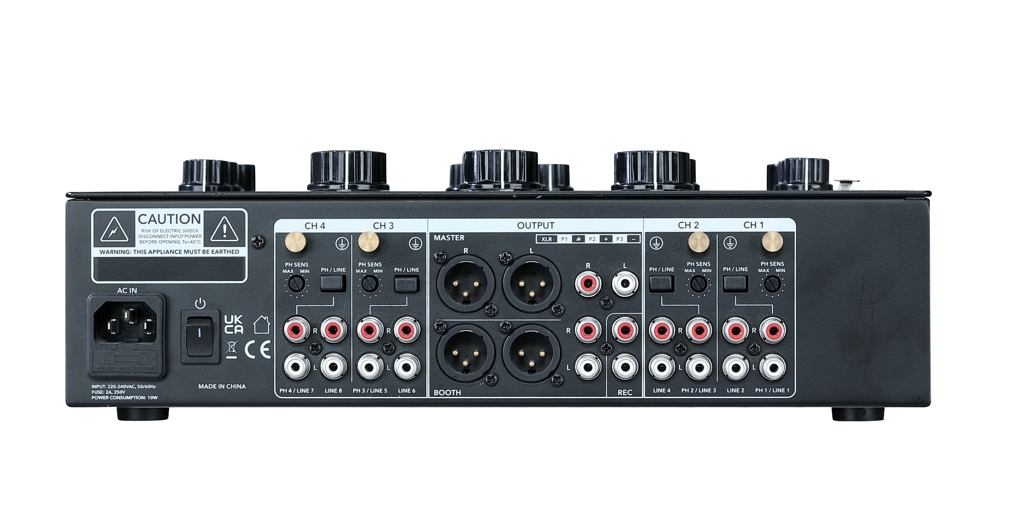

8 Line and 4 phono inputs (RCA L / R)
Master and Booth (XLR / RCA L / R) and Record (RCA L / R) outputs
Frequency range microphone: 20 - 20000 Hz
Frequency range line: 20 - 20000 Hz
Frequency range phono: 40 - 18000 Hz
S / N ratio:> 77 dB phono,> 80 dB microphone,> 85 dB line
LOGISTICS DATA
Single Carton Size...........................454x300x140mm
Single Crton Gross Weight...............................3.95kg
Units per Master Carton..........................................4
Master Carton Size............................590x450x330mm
Master Carton Gross Weight............................20.30kg
