DSP Processors DPX-4800
Powerful DSP Speaker Management System | 4 In 8 Out |FIR HP/LP/Band-Pass Filters
DPX4800 is a 4-IN/8-OUT digital speaker management system. Designed to be catered for any crossover configuration, it provides the suitable processing and control necessary for both live and fixed installation use. It offers 4 analog inputs, 8 analog outputs, managed by a powerful ADI DSP, in addition to high performance 24 bit AD and 32 bit DA Converters.
Each input channel provides a choice of EQ with 12-band Parametric EQ and Dynamic EQ, Gain control, Noise Gate Function, Expander and configurable Delay. Each output offers up to 16-band of parametric EQ, Gain control, Noise Gate function, RMS Compressor and configurable Delay. in addition to the crossover filters which themselves provide slopes from 6dB/Octave up to 48dB/Octave. Each output path also features Peak Limiter, FIR HP/LP/Band-pass Filters.

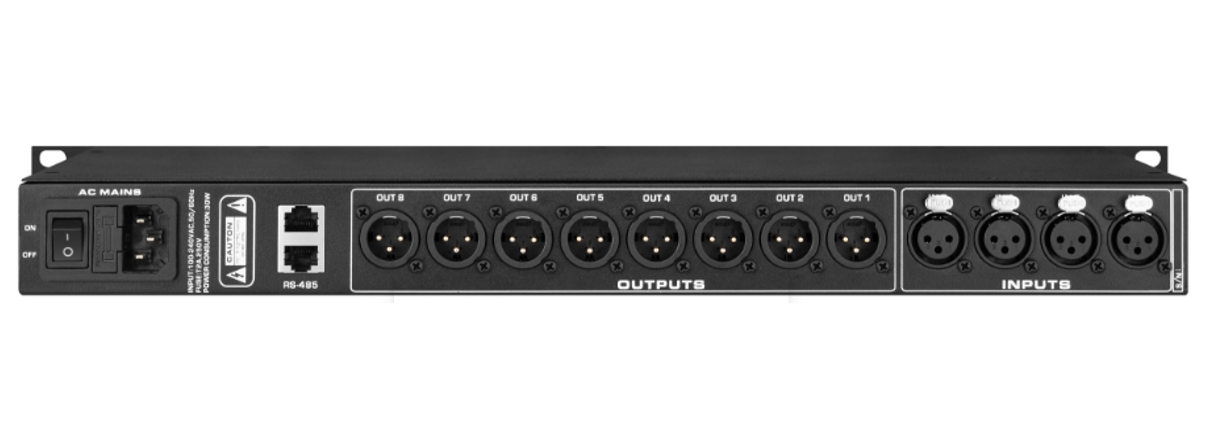

The DPX4800 supports a full matrix mixing mode where inputs may be routed/mixed in any ratio to any output. For remote configuration and control the DPX4800 can be connected via USB or RS485 connections. The control remote PC software allows simultaneous control up to 50 units, setting all parameters and showing real time levels.
DPX4800 is a 4-IN/8-OUT digital speaker management system. Designed to be catered for any crossover configuration, it provides the suitable processing and control necessary for both live and fixed installation use. It offers 4 analog inputs, 8 analog outputs, managed by a powerful ADI DSP, in addition to high performance 24 bit AD and 32 bit DA Converters.
Each input channel provides a choice of EQ with 12-band Parametric EQ and Dynamic EQ, Gain control, Noise Gate Function, Expander and configurable Delay. Each output offers up to 16-band of parametric EQ, Gain control, Noise Gate function, RMS Compressor and configurable Delay. in addition to the crossover filters which themselves provide slopes from 6dB/Octave up to 48dB/Octave. Each output path also features Peak Limiter, FIR HP/LP/Band-pass Filters.
The DPX4800 supports a full matrix mixing mode where inputs may be routed/mixed in any ratio to any output. For remote configuration and control the DPX4800 can be connected via USB or RS485 connections. The control remote PC software allows simultaneous control up to 50 units, setting all parameters and showing real time levels.
FEATURES
Testing signal：Independent sine wave/white noise/pink noise selection on each channel
Input EQ：12band(parameter/hi-low shelf/Allpass)+3band dynamic EQ
Extender ：Threshold/Ratio/Attack time/Release time can
be adjusted
High pass type： Linkwitz/Bessel/Butterworth
6/12/18/24/30/36/42/48dB
Low pass type： Linkwitz/Bessel/Butterworth
6/12/18/24/30/36/42/48dB
Adjustable delay：1200ms on each chanel/precision at 0.01ms
Group delay：2.8ms@96KHz/1.2ms@192KHZ

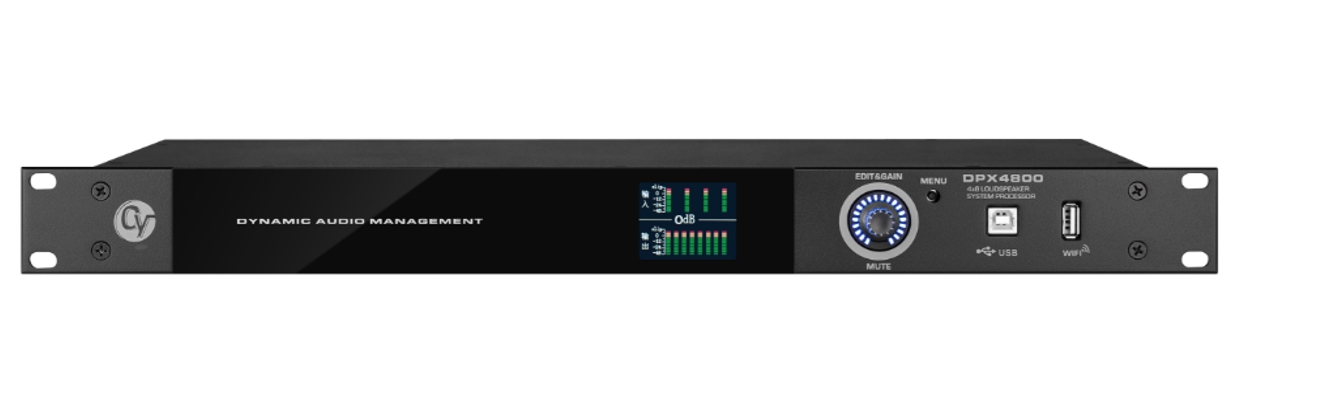

Level meter：LCD dynamic indication
TECHNICAL DATA
Power range:AC
supply 100V-260V~ 50Hz-60Hz
THD........................<0.005%@10Hz-25KHz)
SNR.............>118dB@1%THD+N10Hz-25KHz
Frequency response........±0.2dB 10Hz-25kHz
Max.Input level..................+20dBu/7.75Vrms
Max.Output level...............+20dBu/7.75Vrms
Dimensions................W483xH295xD440mm
Weight.............................................2.20 kg
LOGISTICS DATA
Single Carton
size.............608*345*90mm
Single Carton gross weight................2.7kg
Units per master carton..........................4
Master carton size...........628*390*375mm
Master carton gross weight..............11.7kg
