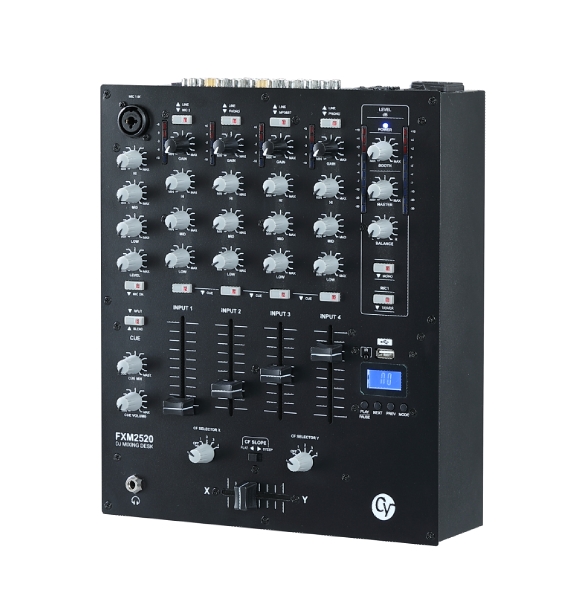

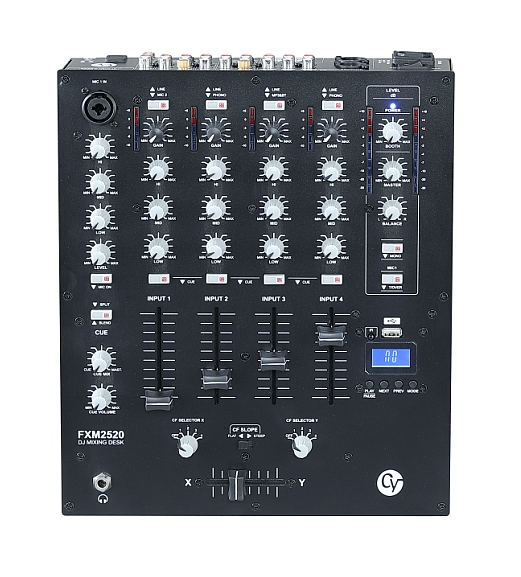

DJ mixer FXM-2520

The FXM-2520USB DJ Mixing Desk is the perfect choice for anyone who wants to get into DJing at a limited budget but with a full set of features, including basic USB connectivity. Four stereo inputs with Kill-EQs and fully assignable crossfader make this console very flexible for mixing, while the dedicated microphone input with voice-specific EQ allows proper hosting of any event. Two master outputs, with the main output being balanced, and a configurable, powerful headphone section make any Home DJ’s bedroom, but also any party venue, stage or small club an adequate home for this “no-frills-but-all-skills” mixer. Having effects/MP3/USB different options.

FEATURES

AUDIO INPUTS

CH 1 Mic: 40dB Gain,XLR electronically balanced&Unbalanced

Mic 2: 40dB Gain,unbalanced input.

Phono in: 40dB Gain,unbalanced input.

Line in:   0dB Gain,unbalanced input

INPUTS impedance

CH 1 Mic: 34Kohm

Mic 2: 34Kohm

Phono:   31Kohm

Line: 3.6Kohm

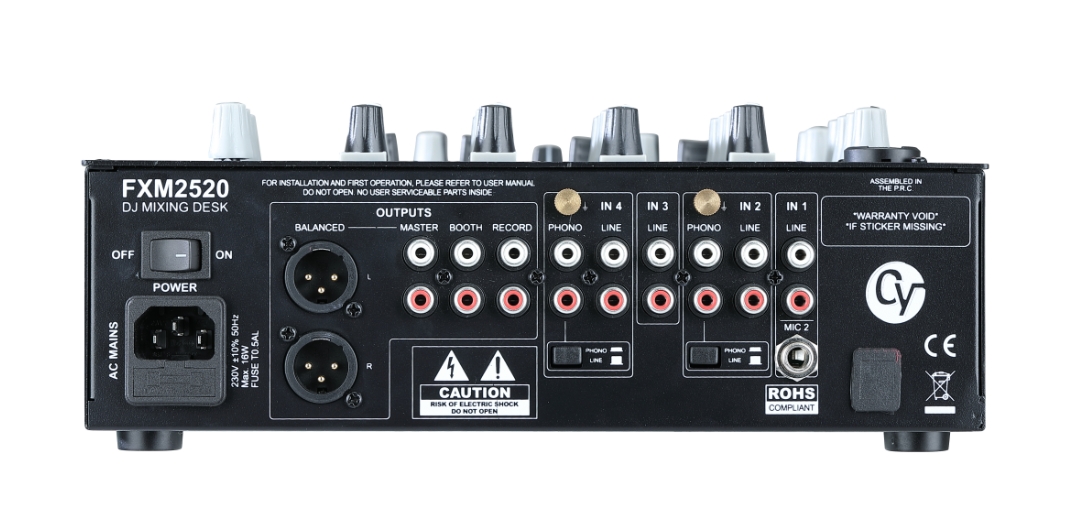

AUDIO OUTPUTS

Main: Max.+18 dBu

Booth: Max.+18 dBu

Record: typ.0 dBu

Headphones: Max.120mW @ 75 Ohm/1% THD

OUTPUT impedance

Main unbalanced output: 550 ohm

Main balanced output: 470 ohm

Booth balanced output: 550 ohm

Record balanced output: 1.8 kohm

EQUALIZER

Stereo Bass:+12dB/-29dB @ 50Hz

Stereo Min: +12dB/-24dB @ 1.3kHz

Stereo Treble: +10dB/-12dB @ 10kHz

TECHINICAL DATA

Signal-to-noise ratio(S/N..............................＞77dB(Line)

Crosstalk.......................................................＞65dB(Line)

Distortion(THD) ...............0.1%(Output less than +18dBu)

Frequency response(Refrence at 1kHz) ....20Hz - 22kHz +/- 3dB

Chennel balance.....................................................＜3dB

Power source................ AC 230V~50Hz / AC 120V~ 60Hz

Fuse........................... T1AL/250V / T1AL/125V (5x20mm)

Power consumption........................... 0W/ 19 W (off/ max)

LOGISTICS DATA

Single Carton Size........................400x290x145mm

Single Crton Gross Weight............................3.55kg

Units per Master Carton.......................................4

Master Carton Size........................610x420x310mm

Master Carton Gross Weight..........................17.50kg
