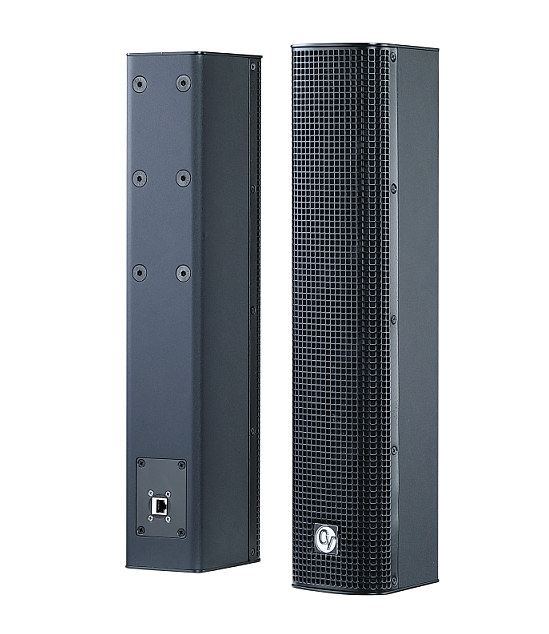

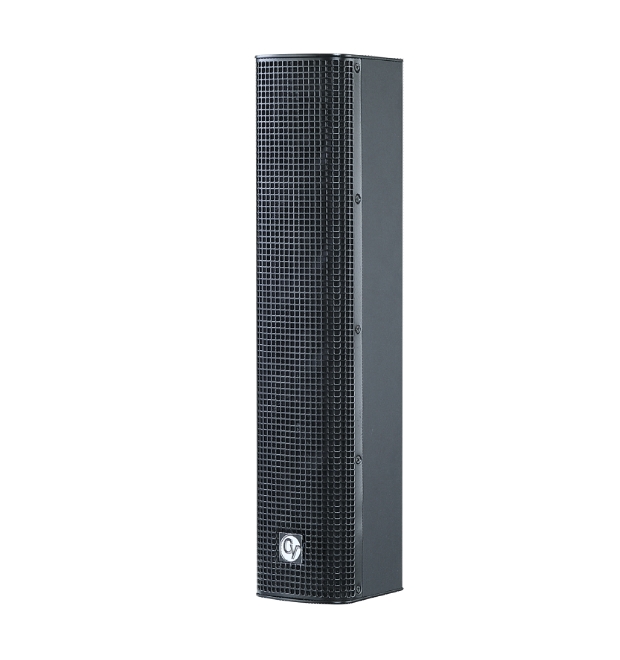

Speaker SMW-4350

SMW-4350 is a new and exciting 4pcs *3.5 inch surface mount speakers with POE. It is specially designed for meeting room.

FEATURES

4x3.5" woofer with 0.8" Voice Coil

Special magnetic circuit design ensures high power and low distortion

Maximum SPL 122 dB peak

Extremely narrow beam angle: 120°wide horizontally but a super narrow 30°vertical angle

Optimized for smooth frequency response in and out axis

TECHNICAL DATA

Configuration: 4x3.5"column loudspeaker

Power handling: 120W RMS / 480W Peak

Frequency response: 150~17KHz(-10dB)

Nominal impedance: 8 Ohms

Average Sensitivity: 96dB/1W/1M

Calculated Maximum SPL/ 1m: 116dB continuous/ 122dB peak

Nominal Directivity (-6dB): 120°H x30°V

Recommended low cut filter: 85-200Hz 24dB/oct , work with subwoofer

Driver: 4x3.5" woofer

Flying hardware: 6pc M8 points

Cabinet: CNC made with tongue and grove assembly MDF wood

Finish: Black PVC

LOGISTIC DATA:

Size (WxHxD) .............. 103x495x130mm

Weight....................................6.00kg net
