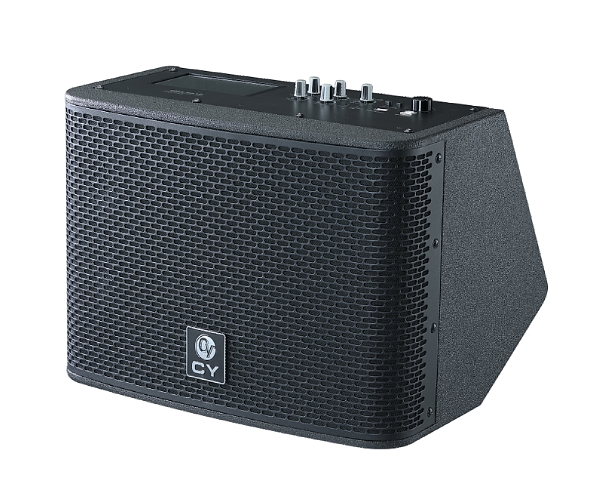

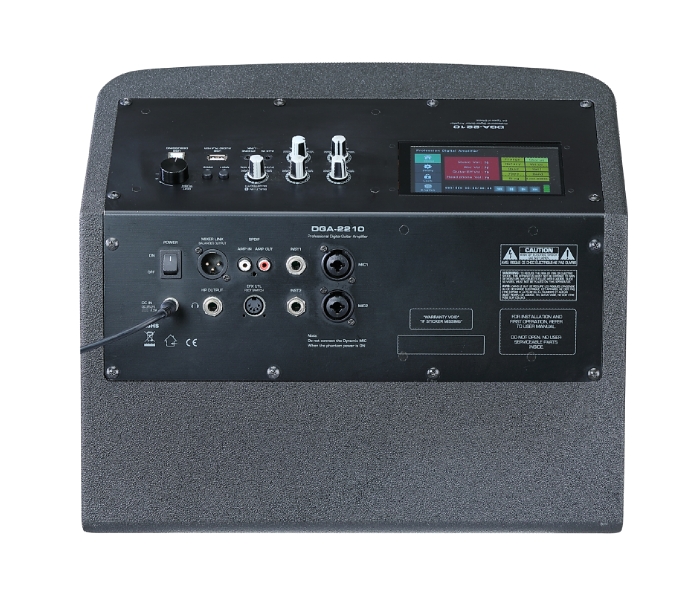

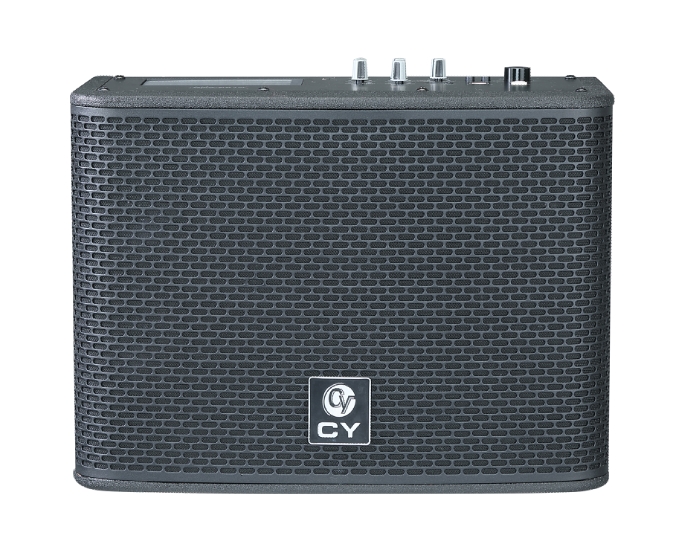

Guitar Amplifier Speaker DGA-2210

DGA-2210 is a 270° listening guitar amplifier speaker without dead angle. Big touchable LCD screen is new innovation to the guitar amplifer speaker and with very powerful DSP ADAU1452 and ADC/DAC AD1939 from ADI building in, it makes DGA-2210 with very good effects not only for guitar player but also for singer.

FEATURES

AUDIO INPUTS

Mic  : 40dB Gain,XLR electronically balanced and unbalanced input.

Inst: 40dB Gain,TRS electronically balanced and unbalanced input.

Line in: 0dB Gain,unbalanced input

INPUTS impedance

Mic  : 2.7 Kohm

Inst : 1 Mohm

Line : 47 Kohm

Output Power

Rated Output Power: Max.120W @ 10% THD

Headphones Power: Max.80mW @ 32 Ohm/1% THD

TECHNICAL DATA

Signal-to-noise ratio(S/N) ...........＞80dB(Line)

Power source......................................DC 28V

Power consumption........ 0W/ 160 W (off/ max)

LOGISTIC DATA:

Size (WxHxD) ..................395*300*285mm

Weight.................9kg net with power supply
