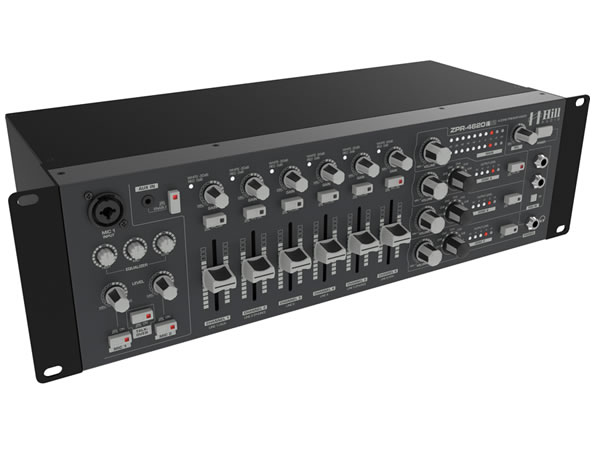

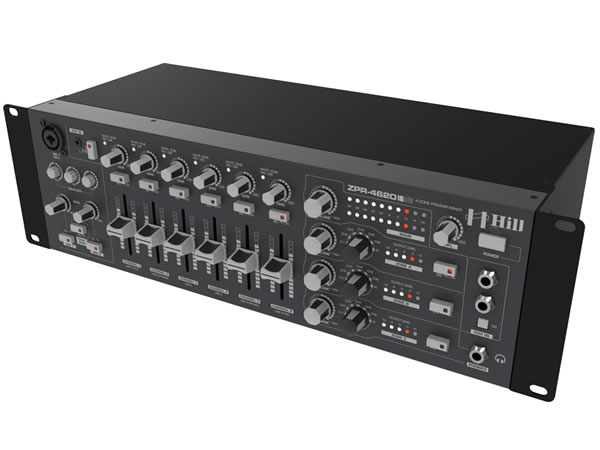

Zoning mixer ZPR-4620V2

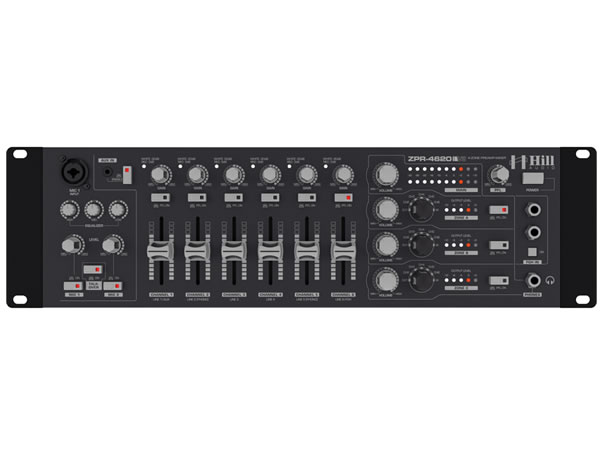

The ZPR-4620V2 4-Zone mixer is the most versatile choice for medium-sized multi-zone sound systems built around a stereo main zone.The unique CascadeZone © concept allows the three additional mono zones to either carry the same signal as the stereo zone or any of the 6 individual input signals. 2 microphone inputs sport adjustable priority and can be included in or excluded from each of the output zones. All essential controls are located on the front panel, while some specific settings can only be made on the rear panel. This includes zone adjustments like maximum level settings, equalization and 100Hz Highpass filters. The combination of front-panel and rear-panel controls make the ZPR-4620V2 ultimately flexible while still being user-friendly even for less experienced operators.

FEATURES

6 stereo input channels (4xLine, 2xPhono/Line) with 2-color signal/peak LED, gain control and 45mm dual-rail fader
1 balanced stereo input (FOH input)
Front panel 3.5mm stereo TRS input
2x Mic inputs with rear-side 1/4” TRS connectors, one with additional front-side Combo connector
12V phantom power for microphones by internal jumper
Voice-specific 3-Band EQ plus “on air” switches for mic inputs Adjustable auto talk-over for automatic microphone priority Master section with one stereo output zone (dual 10 LED level meter) and three mono output zones (5 LED level meters) CascadeZone ©: Mono zone sources selectable from Inputs
1-6 or stereo Master signal

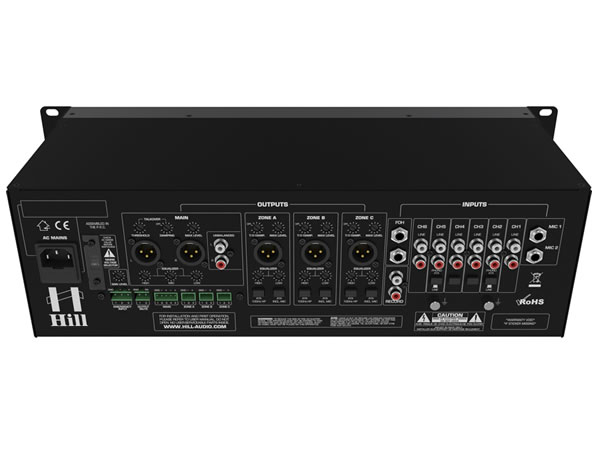

Each output zone with rear-side adjustable max. level control Each output zone with both balanced XLR and Phoenix connec-tors; stereo zone with additional unbalanced RCA output
Rear side EQs: 3-band (stereo zone), 2-band (mono zones) Switchable 100Hz HPF & microphone exclusion for mono zones
Emergency priority input and output mute contact for external output muting/emergency message priority
PFL section with volume control and 6.3mm stereo jack Unbalanced record output
All switches with LED status indicator
Internal linear power supply for excellent audio dynamics
Full metal case with detachable rack ears
AC mains voltage selector switch 115/230V
CE/ROHS compliant

TECHNICAL DATA

Signal/Noise....>82dBu (unwgtd 22Hz-22KHz)

Crosstalk Damping...................＞65dB (Line)

THD......................................＜0.05% (Line)

Frequency response................20Hz – 20 kHz

AC IN ..........................115V/230~ 50/60Hz

Power consumption.......................max. 20W

Dimensions.....W483.0×H133.0×D162.0mm

Weight.............................................4.30 kg

LOGISTICS DATA

Order Number................................2002911

Single unit EAN-13..............5060502920652

Single Carton size...............535x255x185mm

Single Carton gross weight....................5.0kg

Units per master carton..............................2

Master carton size..............560x285x390mm

Master carton gross weight.................11.3kg
