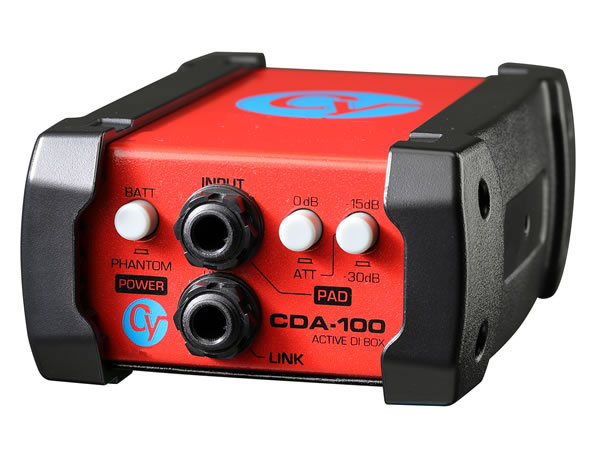

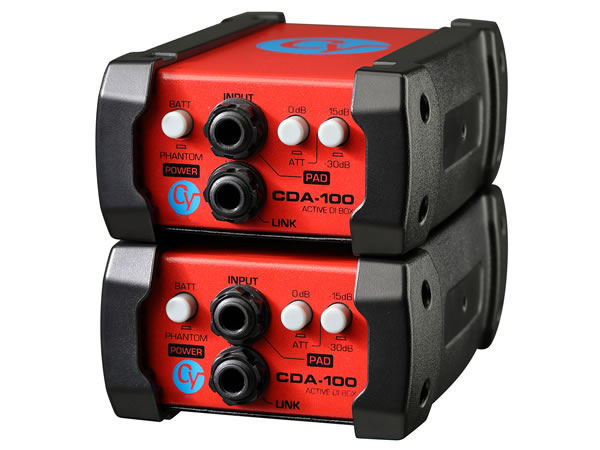

DI BOX CDA100
The CDA100 Direct box is the phantom-powered active DI which can achieve between 24V-48V. It has 9V internal battery. Huge 9-Volt internal voltage for extra headroom and the extra headroom significantly reduces harmonic, phase and internal modulation distortion. And when you fix all of the problems,you can get great sound.
Data
|
Input connector |
1/4 inch TRS(mono) unbalanced |
|
Link connector |
1/4 inch TRS(mono) unbalanced |
|
Output connector |
XLR balanced output |
|
|
|
|
Input impedance |
＞ 1 Meg.ohm |
|
Output impedance |
680 ohm |
|
|
|
|
|
|
|
Input PAD switch |
0dB, -15dB, -30dB |
|
Reverse switch |
180° Phase - Reverses pin-2 and pin-3 on the XLR output |
|
Ground LIFT switch |
Disconnect XLR Pin-1 |
|
|
|
|
Noise floor |
＜-90dB |
|
Distortion(THD) |
＜0.015% @ 1 kHz( Input level 0dBu) |
|
Frequency response(Reference at 1kHz) |
20Hz - 22kHz +/- 1dB |
|
Maximum output(1%) |
+10dB(Battery) |
|
|
+15dB(+48V phantom power) |
|
|
|
|
Phantom power |
24 - 48 VDC |
|
Battery |
9 Volt |
