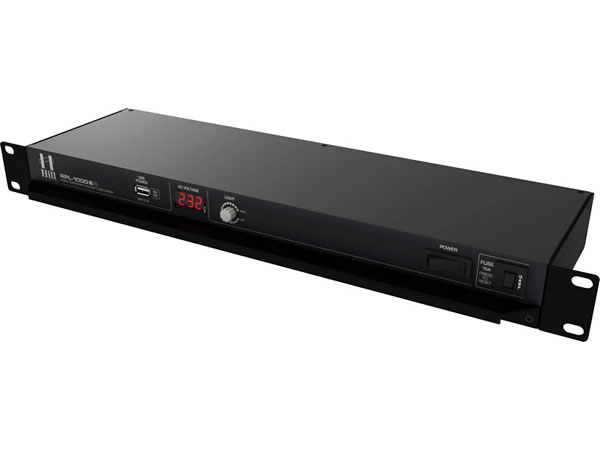

Power system RPL1000

Rack Power Source
Surge Protector | 10 IEC Outlets| LED Racklight| Voltmeter | USB Charger

The RPL-1000 combines a power distribution system, a surge protector, a rack light and a USB power socket in one rack space, thus making at an indispensable tool for both installed and mobile sound systems. RFI/EMI filtering comes along with a 15 amp circuit breaker to protect equipment and ensure better performance due to cleaner AC supply to the 10 rear-panel IEC sockets. The front-panel volt meter helps understanding the AC grid condition meanwhile. Unlike old-fashioned racklights with prone-to-break-off pull-out bulb tubes, the racklight section of the RPL-1000 works with a fixed strip of daylight white LEDs, providing a smooth and evenly distributed downward light curtain which is adjustable in its brightness and virtually unlimited in its lifetime. Last but not least, the RPL-1000V2 solves the omnipresent challenge of providing power to a tablet or smartphone in an event environment by sporting a massive 2A of power at its USB charging socket to satisfy even the most power-hungry tablets.

Features

·         Power distribution with single inlet and 10 switched, rear-side IEC C-13 Outlets

·         Max. power per single outlet 5A, maximum power per group of 5 outlets 8A, maximum total output power 15A

·          15A resettable front-side circuit breaker

·         RFI/EMI filter for AC outlets

·         Triple-mode varistor spike and surge protection for AC outlets

·         3-digit digital AC voltage meter with 3% precision

·         Main on/off switch

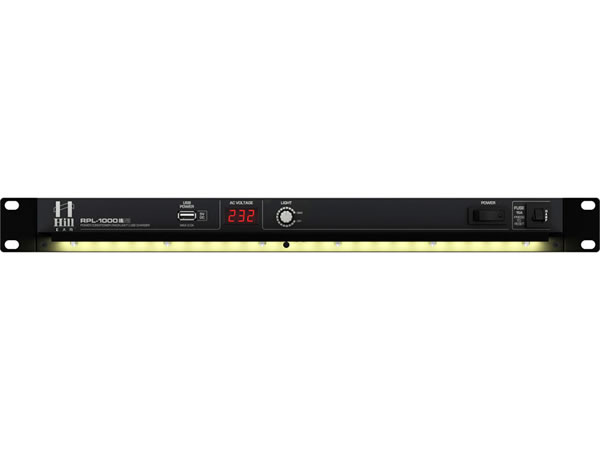

·         Racklight section with full-width daylight white LED strip

·         Dimmer for racklight with seamless brightness adjustment and on/off switch

·         USB charger socket with 2A maximum current

·         Full metal case with detachable rack ears

·         IEC-C20 power inlet (self-mount C-19 plug included)

·          Delivery including self-mount C-14 plugs

·         CE/ROHS compliant



Data

·         Switched Outlets: 10 (2 groups 5 each)

·         Max. Output Current (per outlet/group): 15A (5A/8A)

·         Circuit Breaker: 15A

·          AC IN: 115-230V~ 50/60Hz

·         Power consumption: max. 18W

·         Dimensions W483xH44.5xD150.0mm

·         Weight: 1.95 kg
