Analog processor RPH8000

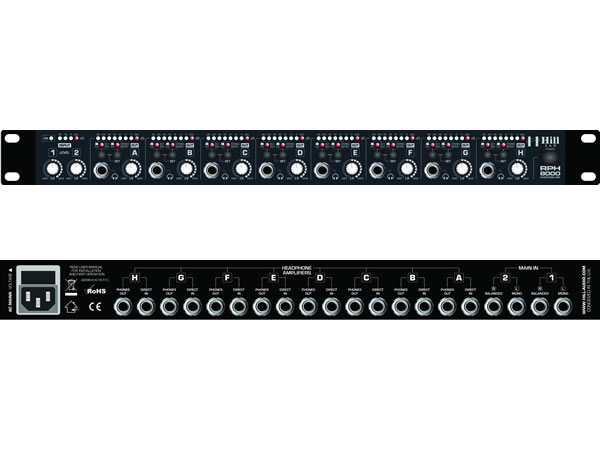

The RPH-8000 is an 8-way headphones amplifier designed to improve signal monitoring in studio recording and live sound. With two independent stereo main inputs and a dedicated direct input in each channel, individual artist can obtain a customized monitoring mix, providing a perfect condition for the best performance. The unit sports eight high-power amplifiers that can drive loads down to 8 Ohms, and can hence provide abundant power to every headphone available. Each amplifier section features an 8-digit output level meter, a Main-In-1/Main-In-2 selection switch, a stereo or dual mono selector switch, and a TRS direct input for connecting an additional sound source. As outputs, each section offers a TRS output on both the rear panel and the front panel. In the main input section, a dedicated 5-segment level meter and separate main level adjustments for the two inputs complete the feature set. Whether for studio sessions or as a pre-mixer for in-ear monitoring, the RPH-8000 is an indispensable tool for recording and live sound professionals alike.

Features (EN)

·         8 independent stereo high-power amplifier sections in one rack space

·         8 independent direct inputs provide up to 8 individual stereo mixes from any sound source

·         Output level control and 8-digit output level meter per channel

·         2 stereo main inputs for two independent mixes, accessible from all 8 output channels

·         Input level control and 5-digit input level meter

·         Mono/stereo switch per output section for more flexibility

·         1 front and 1 rear TRS phones connector per channel

·         All switches with LED status indicator

·         Internal wide-voltage swing linear power supply for excellent audio dynamics

·         Full metal case with detachable rack ears

·         AC mains voltage selector switch 115/230V

·         CE/ROHS compliant

Data (EN)

·         Max Output Power per channel: +21 dBm (load impedance 100 Ω)

·         Signal/Noise ＞90dBu (unweighted 22Hz-22KHz)

·         THD ＜0.01%

·         Frequency response 20Hz – 20 kHz

·         AC supply 115/230V~ 50Hz-60Hz (30W)

·         Dimension 483.0×44.5×170.0 mm WxHxD

·         Weight 2.72 kg
